TR 2B I INT NC
Double Mitre Saw. Saw blades 370 mm. Motor Power 4 HP. Complete with Numerical Control Traverse
More info

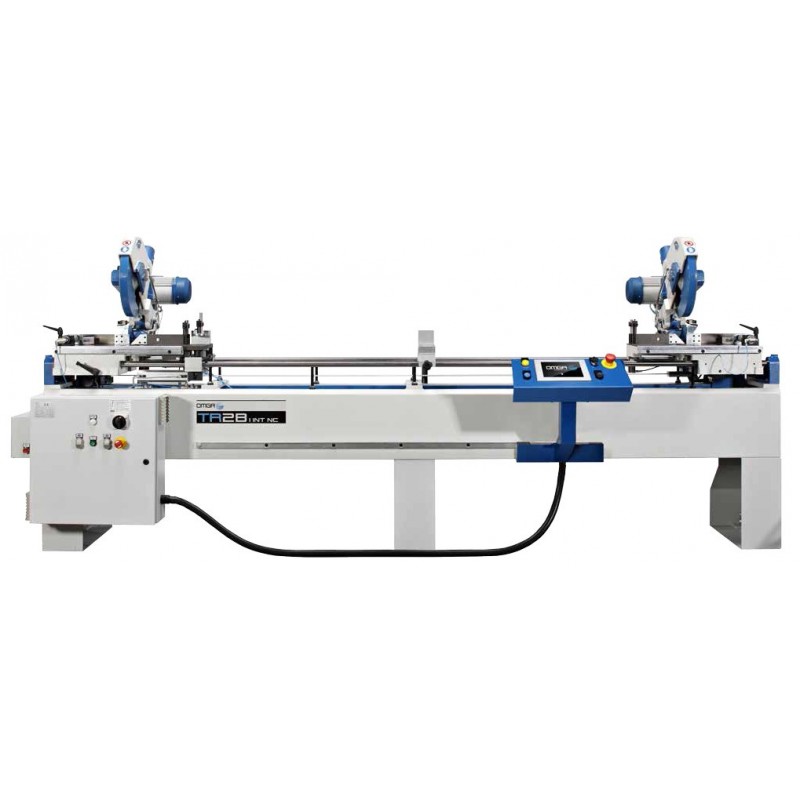

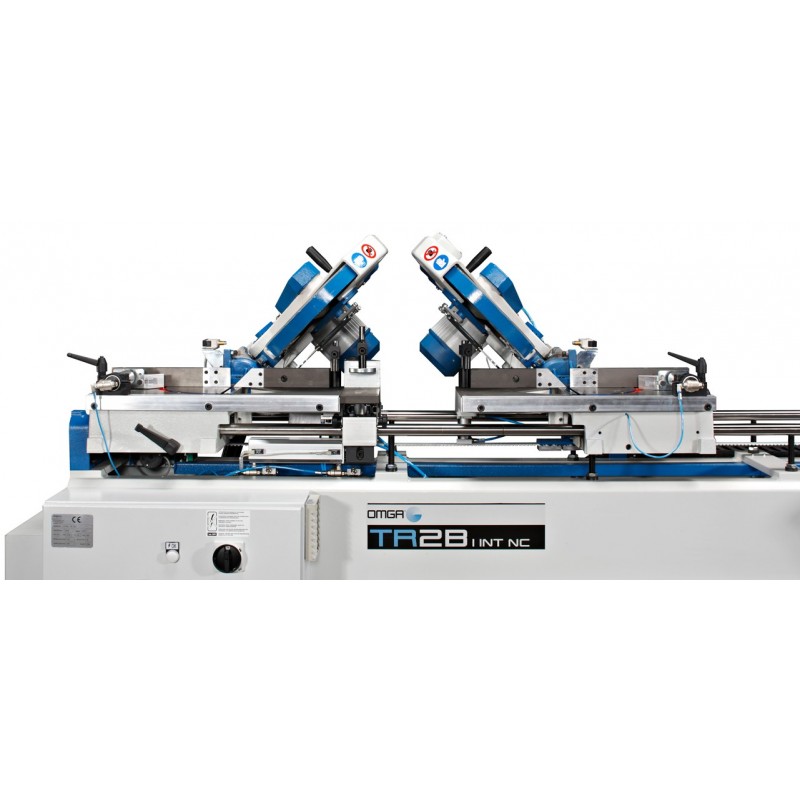

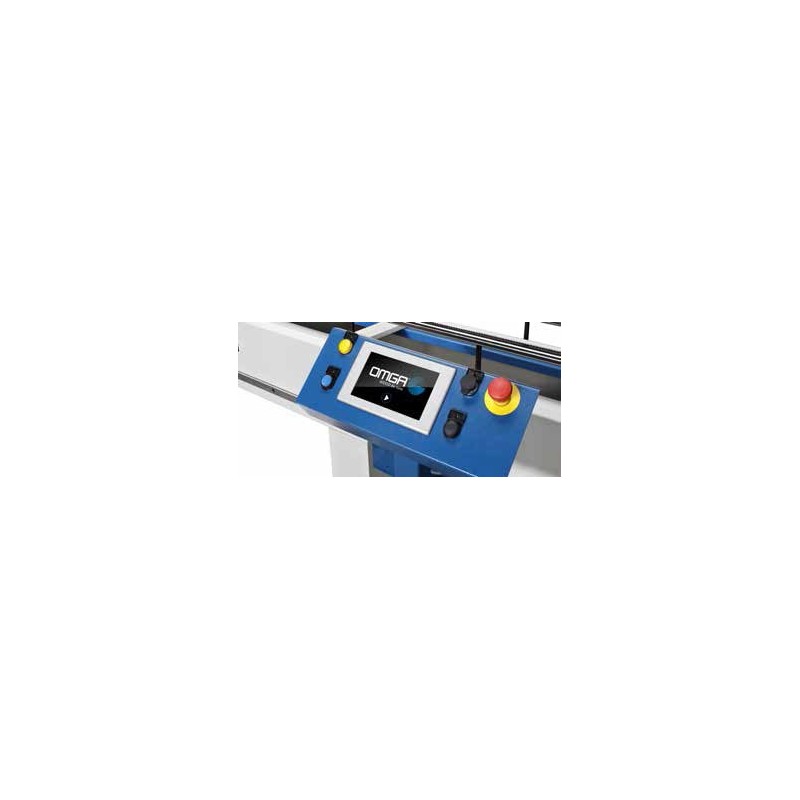

Double Mitre Saw fitted with one fixed head on the left and one movable head on the right with automatic traverse through a Numerical Control with 7" Touch-Screen display . The movable head rides on precision ball bushing for the smoothness of movement. Both heads are tiltable for bevel cuts. Positive stops for all the main angles are standard on both heads. Standard pneumatic vertical and horizontal clamps on each head guarantee stability to the workpiece. The system can be supplied with various cutting lengths and brackets for short pieces. Version for aluminum cutting is also available with air over oil descent of the heads, and spray mist for saw blade lubrication.
Download literature
Download (1.15M)
Data sheet
| TR 2B I INT VIS | TR 2B | TR 2A | TRF 527 | |
|---|---|---|---|---|
| Max. distance between saws | 2800 mm | 2800 mm | 2800 mm | 2800 mm (4000 mm Opt.) |
| Min. distance between saws | 600 mm | 335 mm | 225 mm | 158 mm |
| Min. distance between saws 45 Deg. | 600 mm | 460 mm | 385 mm | 158 mm |
| Cross cut capacity 90 Deg. | 175 mm | 170 mm | 140 mm | 55 mm |
| Cross cut capacity 45 Deg. | 115 mm | 115 mm | 102 mm | 40 mm |
| Max. Depth of Cut | 120 mm | 120 mm | 90 mm | 40 mm |
| Motor power | 2 X 2,9 kW | 2 X 2,2 kW | 2 X 2,2 kW | 2 X 1,18 kW |
| Max. Beveled Cross Cut | 175 mm | N/A | N/A | N/A |
| Saw bore | 30 mm | 30 mm | 30 mm | 30 mm |
| Saw Diameter | 370 mm | 350 mm | 300 mm | 220 mm |
| Arbor speed RPM | 3000 | 3000 | 3000 | 5000 |
| Dust Chute | 2 x 80 mm | 2 x 80 mm | 2 x 80 mm | 2 x 80 mm |
| Approx. Shipping Weight | 800 Kg. | 715 Kg. | 650 Kg. | 230 Kg. |
| Crated Dimensions | 3700 x 1200 x 1600 mm | 3675 x 1500 x 1300 mm | 3675 x 1450 x 1200 mm | 3345 x 600 x 1400 mm |
