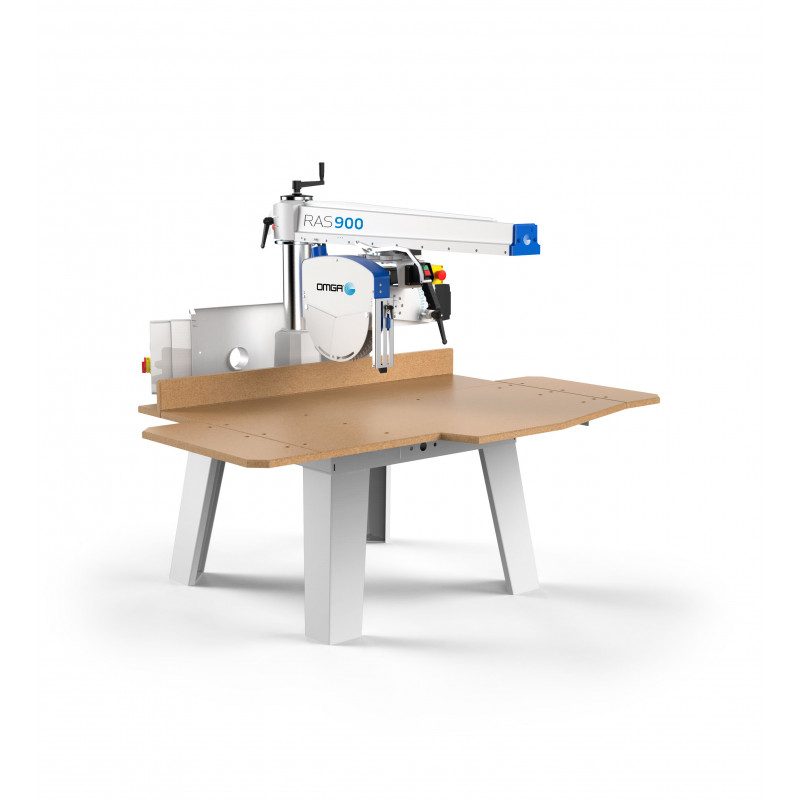

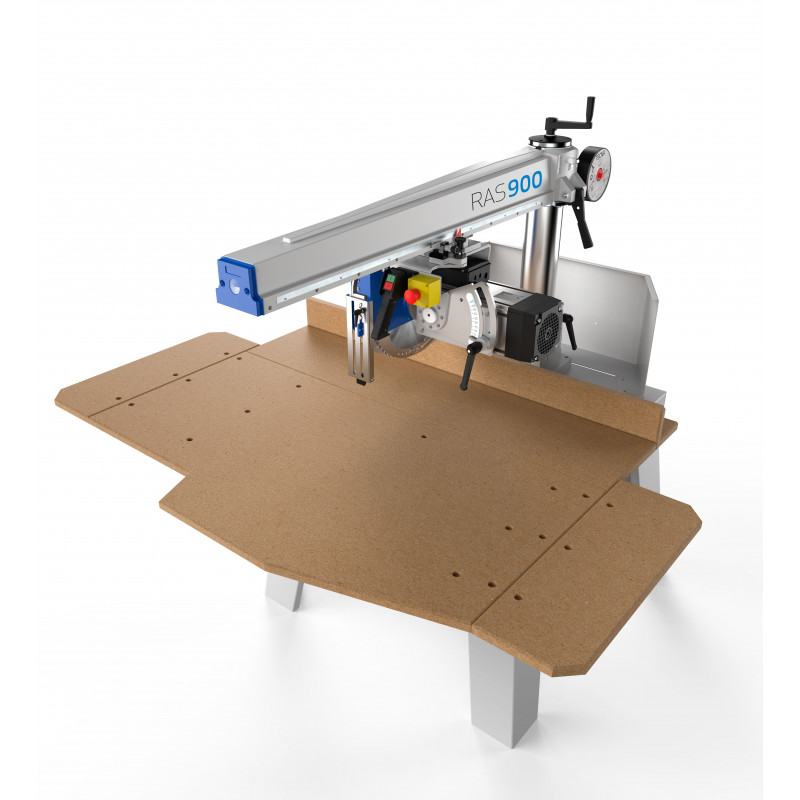

RAS 900

Radial Arm Saw 5,5 KW Motor - Cross Cut Capacity 825 mm - Cast Iron Arm.

More info

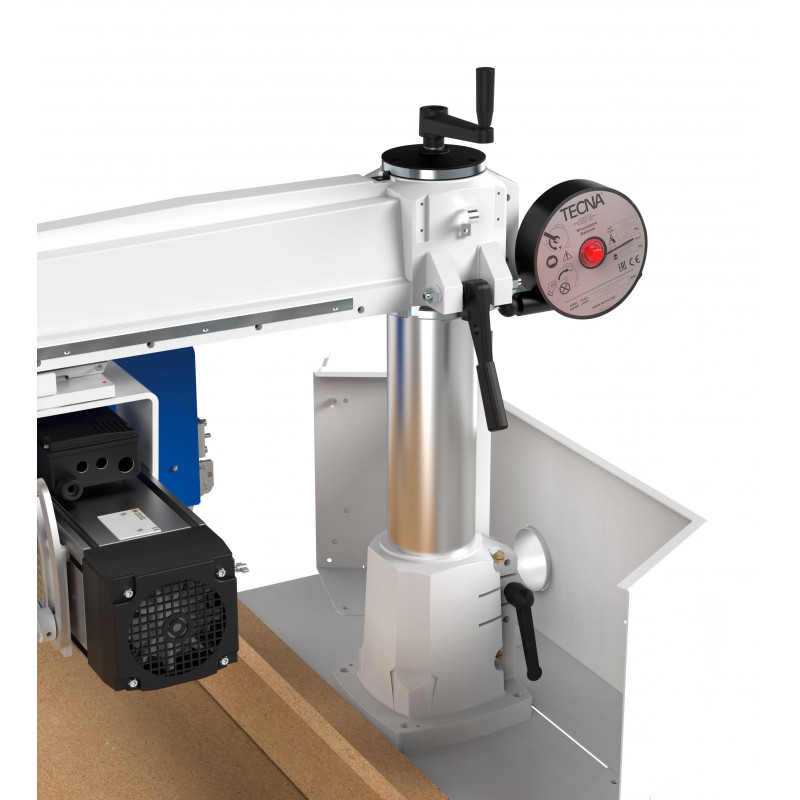

RAS – Heavy Duty Line with Cast Iron Arm.

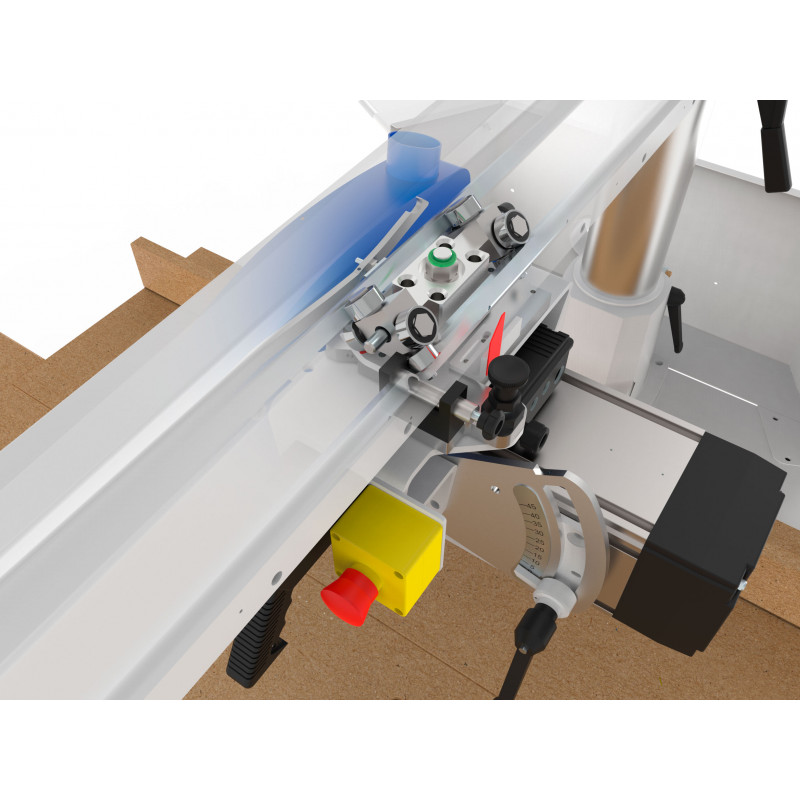

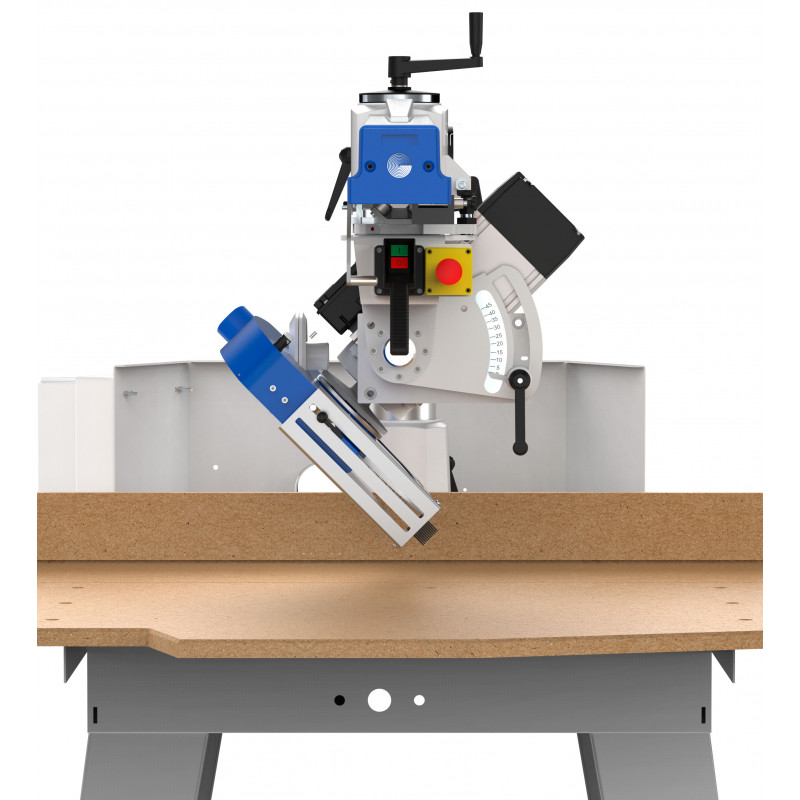

Steel Sliding Tracks, Cutting unit sliding on 8 ball bearings . Auto-centering angle position locking on both horizontal and vertical axis

Download literature

RAS 900-1250 ENG - Low_00

Download (1.29M)

Data sheet

	RAS 900	RAS 1250
Max. Depth of cut 45°	89 mm	89 mm
Motor power	5,5 Kw	5,5 Kw
Saw bore	30 mm	30 mm
Saw Diameter	400 mm	400 mm
Arbor speed RPM	3000	3000
Bevel positive stops	45°	45°
Cross cut capacity	825 mm	1170 mm
Table Size	1970 x 1285 mm	2400 x 1580 mm
Max. Depth of cut 90°	125 mm	125 mm
Miter positive stops	45°-0°-45°	45°-0°-45°
Overall dimensions	1970 x 1285 mm	2400 x 1580 mm
Ripping capacity	N/A	N/A
Shipping Weight	311 kg.	380 kg.
Crated Dimensions	1630 x 765 x 1245 mm	2460 x 765 x 1245 mm
